wallas HEATERS
SPARTAN
Wallas Spartan Diesel 4.5kW Variable Power Forced Air Heater
​
​
Powerful 12 V Diesel Heater
Spartan Air offers the latest remote control features in the marine heater market, which makes it convenient for everyone to use. The Advanced Control Panel can be accessed remotely with a mobile app, which enables you to turn the heater on even from the comfort of your home. Wireless sensor monitors the indoor temperature with better accuracy and maintains a smooth temperature.
When you narrow down the best option for you, an important feature to consider is Spartan Air is equipped with three inlets. In comparison, Spartan Twin has two, and many other heaters in the market only have one. Multiple inlet hoses result in better efficiency and fresher air indoors. Both Spartan Series models are energy-efficient 4.5 Kw heaters – good options for medium-sized boats up to 12 m/40 ft.
​
PURCHASE
Broad Power Range and Versatility
-
Three inlets and outlets for versatility and ease of distribution.
-
Bluetooth and/or WiFi control & monitoring via Smartphone.
-
Thermostatic control panel for great comfort control.
-
Quiet, variable output reduces system cycling.
-
Stainless steel heat exchanger for longevity.
-
Remote diagnostics and system updates.
-
High air volume with optional high boost feature.
-
No exposed flame for safety, low case temperature.
-
Duplex exhaust option allows for in cabin placement.
-
Low exhaust gas volume for safety & silent combustion.
-
Wall mount included, feet for horizontal surface mounting.
-
Superb corrosion free stainless and aluminum construction.
-
Clean, reliable design, all brushless motors minimize servicing.
-
Combustion gas & water vapor vented outside, keeps cabin dry.
OPTIONS & ACCESSORIES:
-
#2467 – Exhaust through hull
-
#5400 – Angled transom exhaust
-
#1028 – 28mm SS exhaust pipe
-
#2045 – 45mm SS combustion air pipe
-
#2449 – 45mm Fiberglass insulation
-
#4030 – 33 liter fuel tank
-
#2027 – 10 liter fuel tank
-
#30011 – Fuel tank pickup
​
-
Voltage: 12VDC
-
Starting amps: 9.0 for 5 min
-
Min. power amps: 0.7 (bare)*
-
Max. power amps: 3.8 (bare)*
-
Boost amps: 5.0 (bare)*
-
*Adding ducting will reduce both air flow and resulting amperage draw
SPECIFICATIONS:
-
Heat output: 5,400 – 15,400 btu
-
Air vol. @ min. heat: 60cfm
-
Air vol. @ max. heat: 110cfm
-
Air vol. @ boost: 134cfm
-
Fuel type: Diesel #2, #1
-
Fuel consump.: 5.5 to 15.7 oz/hour
-
Weight: 27 lbs
INCLUDED EQUIPMENT:
-
1 - 13 ft. fuel line, filter & adapters
-
1 - 13 ft. fused battery cables
-
3008 control panel w/16 ft cable
-
Wired thermo sensor w/19 ft cable
-
Bluetooth thermo sensor
​
​
The Wallas Spartan diesel heater is unmatched for control and accessibility, using multiple sensing points. Heat sensing for thermostatic operation is taken from wired or portable Bluetooth sensors for maximum versatility and ease of installation.
The digital panel provides operational data including running hours, starts, system voltage and is fully updateable. This allows for true thermostatic control from the panel or your Smartphone, via Bluetooth or WiFi anywhere on the globe, including mobile hotspots.
​
This accessibility also allows remote monitoring and troubleshooting by Scan Marine any time or place your vessel has a WiFi connection.

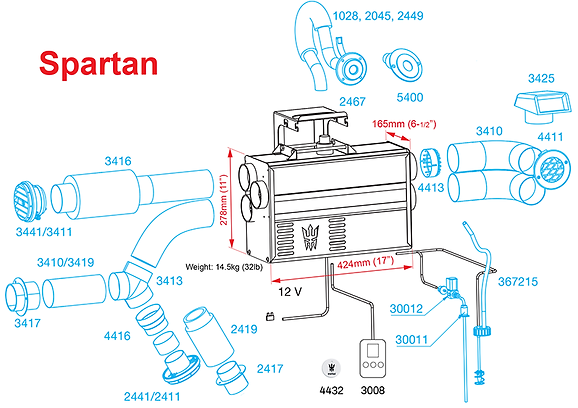

DIMENSIONS:
